tattletale HALO TECHNOLOGY

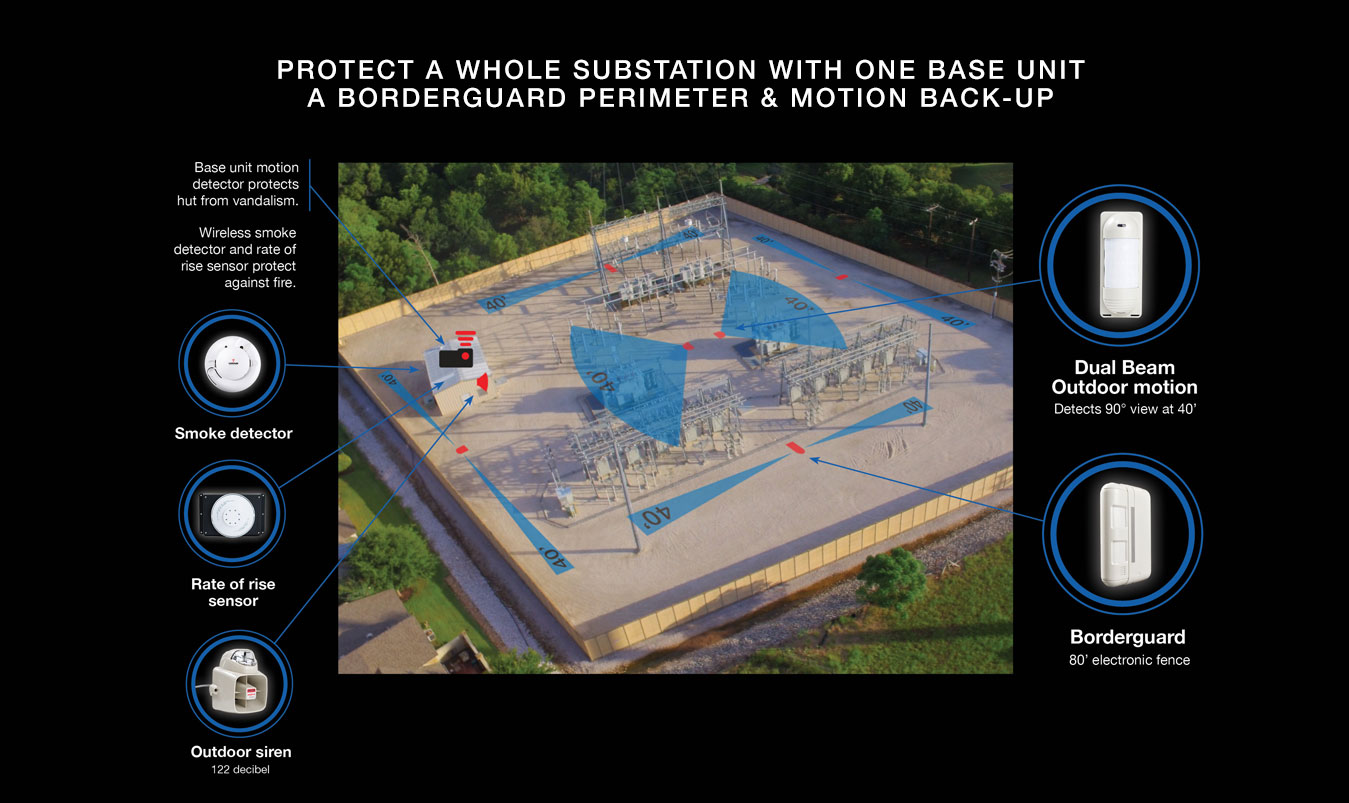

1 tattletale protects a 1 MILE PERIMETER with up to 500 WIRELESS SENSORS
Encrypting automation and control data (SCADA Networks) provide
essential protection and security. Critical infrastructure and industrial
assets are high profile targets for criminals and terrorists
SCADA Network Supported by tattletale HOW IT WORKS:
Overview:
The Tattletale Next Generation Commercial Unit (NGC) when used in conjunction with a Schweitzer Engineering Laboratories, Inc. (SEL) Real-Time Automation Controller (RTAC), will be able to provide real-time data to a SCADA master via the DNP3 protocol. Additionally, the NGC will be able to respond to DNP3 outputs in order to control the armed states of the alarm system.
The supplied SEL AcSELerator RTAC project file is written in the 61131 Ladder Logic language, allowing for easy modifications to suit custom requirements.
The communication between the NGC and RTAC is also monitored and its state is passed back to the DNP3 master. Trouble will be reported within 5 seconds.
The entire NGC system status is updated to the RTAC at a 1Hz to 2Hz rate.
System Requirements:
tattletale NGC Unit
- Running 4.XX (4.39 or higher) software
SEL RTAC model SEL-3505, SEL-3505-4, SEL-3530, or SEL-3530-4
- https://selinc.com/products/3505/
- https://selinc.com/products/3530/
- Running R1.40 or higher firmware
- SEL AcSELerator RTAC Development Environment software
- Tattletale provided SEL AcSELerator RTAC Project File
Crossover Ethernet cable
RATTLERTM
protects material & equipment
The Rattler is your snake in the wood pile. Attach it to anything, if the sensor is moved in slightest you’ll know instantly.
Tie up your equipment
A smart bike lock that can tie up anything. When the cable is detached or cut you’ll know instantly.
